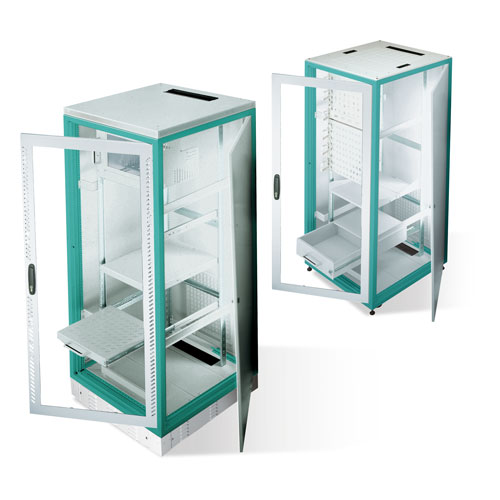

19"/21"/23"/24" Wide Aluminium Server Rack/ Network Cabinet(CLM-218XX-XX)

Aluminium Cabinet Rack
see more:

  • 19"/ 21"/ 23"/ 24" Industrial Equipments
  • ANSI/EIA-RS-310C/D
  • Extruded Aluminium Section, #6063.
  • Powder coating for RoHS compliant
  • UL/CE Certification
  • Vibration Test MIL-STD-167
  • Color: Black/ Beige
  • Flat Packages
  • Loading Weight: 1600 KGS up
Petent Pended No.:
Taiwan 187825, 181975, 190521 90201748, 91218223
USA 6,467,640 69/975,940
Germany 20115454, 20111765.7
China ZL012231604.0 , 012603147 02233722.9

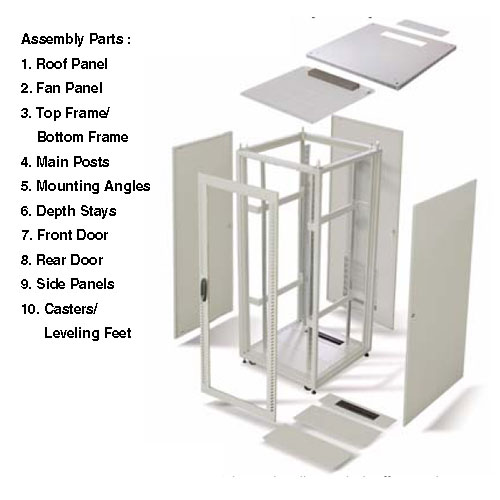

Aluminium Cabinet Rack

Door Variants:
1. Vented Glass Door
2. Mesh Door
3. Glass Door
4. Flat Door

Roof Panel Variants:
1. Flat Panel
2. Vented Panel
3. Vented Skirt in 46mm Height
4. Ventilation Panel

Mounting Angles:
1. F-shaped
2. U-shaped
3. M-shaped
4. S-shaped
5. L-shaped
6. R-shaped

Rackmount Accessory Variants


  • Applications for servers, networking system & monitoring system, such as IBM and INTEL servers.
  • With 19"/ 21"/ 23"/ 24" industrial standard, such as ANSI/EIA-RS-310C/D.
  • Central standard ministry vibration test approve.
  • The extruded aluminium construction, alley #6063, are integrated stability, heavy-loading, over 1200 kgs, and light weight together.
  • A patent pended swing lock protect the system from unauthorized operations.
  • Two entries with brushes on the roof and plinth isolate dusty and keep systems and cable secure.
  • The vented design on the top panel , the bottom panel & the front door can efficiently reduce the interior heat for higher ventilation.
  • Design of the roof & the plinth for easily assembled & dismantled.
  • Temperated glass on the door can keep security of the system and convenient to monitor the condition without opening the door.
  • Powder coating for RoHS compliant.
  • Black & Beige for color selections.
  • OEM & ODM product are welcomed to contact us.
  • D.I.Y. flat package for saving freight cost and more room.

Width Depth Height(mm) Height(U) Model No.
800mm 600mm 600mm 11U CLM-2186-12
800mm 600mm 800mm 15U CLM-2186-16
800mm 600mm 1000mm 20U CLM-2186-21
800mm 600mm 1200mm 24U CLM-2186-25
800mm 600mm 1400mm 29U CLM-2186-30
800mm 600mm 1600mm 33U CLM-2186-34
800mm 600mm 1800mm 38U CLM-2186-39
800mm 600mm 2000mm 42U CLM-2186-43
800mm 600mm 2200mm 47U CLM-2186-47
800mm 700mm 600mm 11U CLM-2187-12
800mm 700mm 800mm 15U CLM-2187-16
800mm 700mm 1000mm 20U CLM-2187-21
800mm 700mm 1200mm 24U CLM-2187-25
800mm 700mm 1400mm 29U CLM-2187-30
800mm 700mm 1600mm 33U CLM-2187-34
800mm 700mm 1800mm 38U CLM-2187-39
800mm 700mm 2000mm 42U CLM-2187-43
800mm 700mm 2200mm 47U CLM-2187-47
800mm 800mm 600mm 11U CLM-2188-12
800mm 800mm 800mm 15U CLM-2188-16
800mm 800mm 1000mm 20U CLM-2188-21
800mm 800mm 1200mm 24U CLM-2188-25
800mm 800mm 1400mm 29U CLM-2188-30
800mm 800mm 1600mm 33U CLM-2188-34
800mm 800mm 1800mm 38U CLM-2188-39
800mm 800mm 2000mm 42U CLM-2188-43
800mm 800mm 2200mm 47U CLM-2188-47
800mm 900mm 600mm 11U CLM-2189-12
800mm 900mm 800mm 15U CLM-2189-16
800mm 900mm 1000mm 20U CLM-2189-21
800mm 900mm 1200mm 24U CLM-2189-25
800mm 900mm 1400mm 29U CLM-2189-30
800mm 900mm 1600mm 33U CLM-2189-34
800mm 900mm 1800mm 38U CLM-2189-39
800mm 900mm 2000mm 42U CLM-2189-43
800mm 900mm 2200mm 47U CLM-2189-47
800mm 1000mm 600mm 11U CLM-21810-12
800mm 1000mm 800mm 15U CLM-21810-16
800mm 1000mm 1000mm 20U CLM-21810-21
800mm 1000mm 1200mm 24U CLM-21810-25
800mm 1000mm 1400mm 29U CLM-21810-30
800mm 1000mm 1600mm 33U CLM-21810-34
800mm 1000mm 1800mm 38U CLM-21810-39
800mm 1000mm 2000mm 42U CLM-21810-43
800mm 1000mm 2200mm 47U CLM-21810-47
