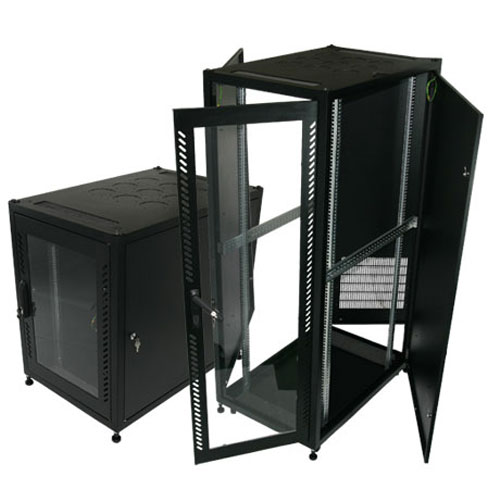

19" Network Computer Rack/ Cabinet(CLM-206XX-XX)

Sheet Steel Cabinet Rack

see more:

  • 19" Industrial Equipments
  • ANSI/EIA-RS-310C/D
  • Sheet Steel Structure
  • Powder coating for RoHS compliant
  • UL/CE Certification
  • Color: Black/ Beige
  • Flat Packages
  • Loading Weight: 800 KGS up
Patent Pended No.:
TW M271065
JP 3118290
GE 20020050163511
US 11/266,282


  • Applications for server system, telecommunication system, community network, network system, monitoring system.
  • Meets 19" industrial standard, such as ANSI/EIA-RS-310C/D
  • Adjustable Mounting Angles by per patch holes of 50mm
  • "D.I.Y." flat packages for saving more freight cost and room.
  • Four additional entries on the roof and plinth are good for the cable management.
  • The vented design on the top panel , the bottom panel & the front door can efficiently reduce the interior heat for higher ventilation.
  • Sponges on cable entries can block dusty and keep cable and keep the system secure.
  • Design of the roof & the plinth for easily assembly & dismantled.
  • Temperated on the door can keep security of the system and convenient to monitor the condition without opening the door.
  • Powder coating for RoHS compliant .
  • Black & Beige for color selections .
  • All product are made in Taiwan.
  • ODM & OEM product are welcomed to contact us.

Standard Assembly Parts:
1. Roof Panel
2. Plinth
3. Main Posts
4. Front door/ Rear Doors
5. Side Panel
6. Depth Stays
7. Mounting Angles
8. 2.6" Castor/ Leveling Feet

Door Variants:
1. Vented Glass Door
2. Mesh Door
3. Glass Door
4. Flat Door
5. Two Door/ Three Doors/ Four Doors

Roof Panel Variants:
1. Flat Panel
2. Vented Panel
3. Panel in 32mm Height
4. Ventilation Panel

Mounting Angles:
1. F-shaped
2. U-shaped
3. M-shaped
4. S-shaped
5. L-shaped

Rackmount Accessory Variants

Width Depth Height (mm) Height (U) Model No.
600mm 600mm 600mm 11U CLM-20660-11
600mm 600mm 800mm 16U CLM-20660-16
600mm 600mm 1000mm 20U CLM-20660-20
600mm 600mm 1200mm 25U CLM-20660-25
600mm 600mm 1400mm 29U CLM-20660-29
600mm 600mm 1600mm 34U CLM-20660-34
600mm 600mm 1800mm 38U CLM-20660-38
600mm 600mm 2000mm 43U CLM-20660-43
600mm 800mm 600mm 11U CLM-20680-11
600mm 800mm 800mm 16U CLM-20680-16
600mm 800mm 1000mm 20U CLM-20680-20
600mm 800mm 1200mm 25U CLM-20680-25
600mm 800mm 1400mm 29U CLM-20680-29
600mm 800mm 1600mm 34U CLM-20680-34
600mm 800mm 1800mm 38U CLM-20680-38
600mm 800mm 2000mm 43U CLM-20680-43
600mm 900mm 600mm 11U CLM-20690-11
600mm 900mm 800mm 16U CLM-20690-16
600mm 900mm 1000mm 20U CLM-20690-20
600mm 900mm 1200mm 25U CLM-20690-25
600mm 900mm 1400mm 29U CLM-20690-29
600mm 900mm 1600mm 34U CLM-20690-34
600mm 900mm 1800mm 38U CLM-20690-38
600mm 900mm 2000mm 43U CLM-20690-43
600mm 1000mm 600mm 11U CLM-206100-11
600mm 1000mm 800mm 16U CLM-206100-16
600mm 1000mm 1000mm 20U CLM-206100-20
600mm 1000mm 1200mm 25U CLM-206100-25
600mm 1000mm 1400mm 29U CLM-206100-29
600mm 1000mm 1600mm 34U CLM-206100-34
600mm 1000mm 1800mm 38U CLM-206100-38
600mm 1000mm 2000mm 43U CLM-206100-43
