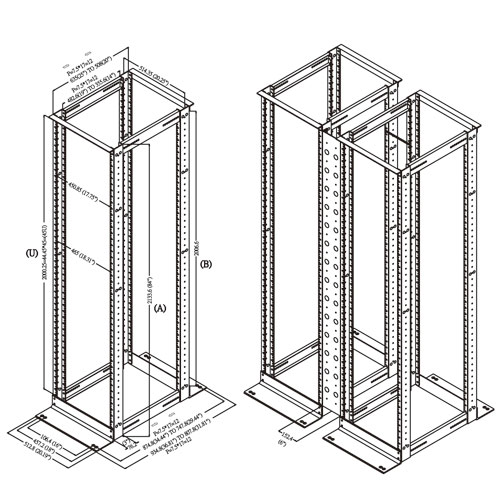

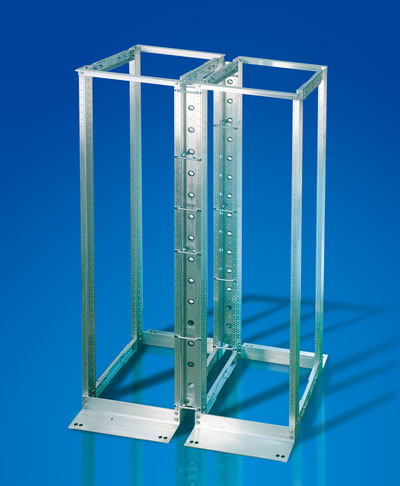

CLM-2252 Two Frames Aluminum Section Open Rack

See More

• Main Structure:
  Extruded Aluminum Section
• One Frame
• Width: 513mm
  Plinth Depth: 831~935mm
• Height: 31u/ 36u/ 40u/ 45u
• Flat Packages

Rackmount Accessories Variants

---

• Applicaions for servers, telecommunication,monitor and cabling networking system.
• Meets 19" industrial standard, ANSI/EIA-RS-310C/D
• Aluminium structure
• Two frames for steady and heavy-loading server system.
• U-shaped mounting frame provide a steady construction.
• Flat packing for saving more freight cost and room.
• Powder coating for RoHS compliant .
• Black & Beige for color selections.

Width	Depth	H(mm)	H(U)	Model No.
513mm	831~935	1514.9	31U	CLM-2252-31
513mm	831~935	1737.2	36U	CLM-2252-36
513mm	831~935	1911.4	40U	CLM-2252-40
513mm	831~935	2133.6	45U	CLM-2252-45
