Home > Open Frame Rack > Welding Open Frame Rack

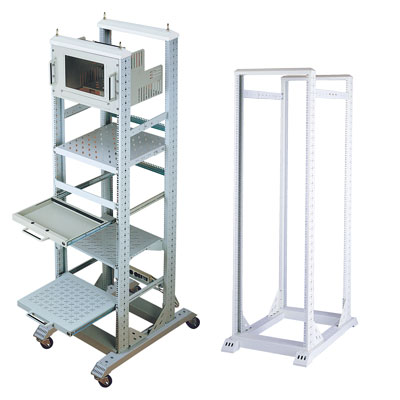

CLM-2202 Two Frames Welding Open Rack


19" steel open frame rack with two frames for telecom appliance

See More

  • Main Structure:
    2.0mm Sheet Steel Frame
    3.0mm Sheet Steel Plinth
  • Two Frames(Welding)
  • Width: 560mm
    Plinth Depth: 750mm/ 900mm
  • Height: 15u/ 20u/ 31u/ 36u/ 40u/ 45u
  • Heavy Loading Castor(Option)
  • Flat Packages
  • Optional Castors
Rackmount Accessories Variants
Width Plinth H(mm) H(U) Model No.
560mm 750mm 788.3 15U CLM-2202-7515
560mm 750mm 1010.5 20U CLM-2202-7520
560mm 750mm 1499.5 31U CLM-2202-7531
560mm 750mm 1721.8 36U CLM-2202-7536
560mm 750mm 1899.5 40U CLM-2202-7540
560mm 750mm 2121.8 45U CLM-2202-7545

560mm 900mm 788.3 15U CLM-2202-9015
560mm 900mm 1010.5 20U CLM-2202-9020
560mm 900mm 1499.5 31U CLM-2202-9031
560mm 900mm 1721.8 36U CLM-2202-9036
560mm 900mm 1899.5 40U CLM-2202-9040
560mm 900mm 2121.8 45U CLM-2202-9045
