Home > Rackmount Accessories > Rail Sections > 3 Sections Telescopic Ball-Bearing Server Rail for " Even U " (2U/ 4U/ 6U)

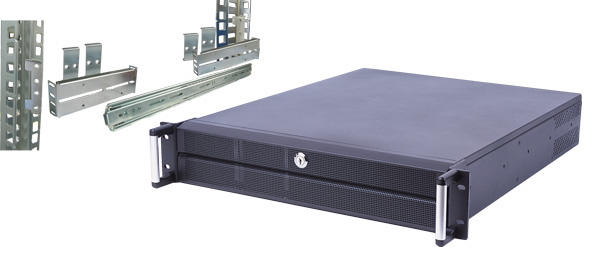

3 Sections Telescopic Ball-Bearing Server Rail for " Odd U " (2U/ 4U/ 6U)

19",rackmount,rack-mount,rack,racks,rail,accessory
Accessories:

Feature：
These server rails can be mounting in all cabinets with pairs of mounting angles through brackets for server rails & mounting onto the cabinet / rack that provides a pair of telescopic rail smooth reliable & convenience operation .

Supply Included：

  • A pair of server rail
  • 2 pair of brackets
  • Assembly parts

    • Meterial：

    Sheet Steel

    Finished:

    Powder coating in color RAL 7035 or RAL 9011
    CLM Part No. Cabinet Depth Rail Depth For Height
    882376-618 600mm 18" 2U/ 4U/ 6U
    8U/ 10U/ 12U
    882376-718 700mm 18" 2U/ 4U/ 6U
    8U/ 10U/ 12U
    882376-818 800mm 18" 2U/ 4U/ 6U
    8U/ 10U/ 12U
    882376-918 900mm 18" 2U/ 4U/ 6U
    8U/ 10U/ 12U
    882376-1018 1000mm 18" 2U/ 4U/ 6U
    8U/ 10U/ 12U

    882376-720 700mm 20" 2U/ 4U/ 6U
    8U/ 10U/ 12U
    882376-820 800mm 20" 2U/ 4U/ 6U
    8U/ 10U/ 12U
    882376-920 900mm 20" 2U/ 4U/ 6U
    8U/ 10U/ 12U
    882376-1020 1000mm 20" 2U/ 4U/ 6U
    8U/ 10U/ 12U

    882376-722 700mm 22" 2U/ 4U/ 6U
    8U/ 10U/ 12U
    882376-822 800mm 22" 2U/ 4U/ 6U
    8U/ 10U/ 12U
    882376-922 900mm 22" 2U/ 4U/ 6U
    8U/ 10U/ 12U
    882376-1022 1000mm 22" 2U/ 4U/ 6U
    8U/ 10U/ 12U

    882376-824 800mm 24" 2U/ 4U/ 6U
    8U/ 10U/ 12U
    882376-924 900mm 24" 2U/ 4U/ 6U
    8U/ 10U/ 12U
    882376-1024 1000mm 24" 2U/ 4U/ 6U
    8U/ 10U/ 12U

    882376-826 800mm 26" 2U/ 4U/ 6U
    8U/ 10U/ 12U
    882376-926 900mm 26" 2U/ 4U/ 6U
    8U/ 10U/ 12U
    882376-1026 1000mm 26" 2U/ 4U/ 6U
    8U/ 10U/ 12U

    882376-928 900mm 28" 2U/ 4U/ 6U
    8U/ 10U/ 12U
    882376-1028 1000mm 28" 2U/ 4U/ 6U
    8U/ 10U/ 12U
