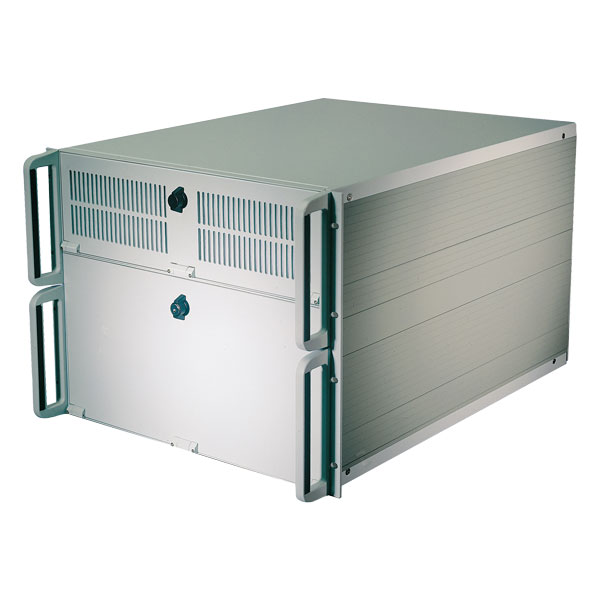

CLM-878A/S (8U IPC Chassis)

8U rackmount chassis
see more
Pend No. Taiwan 0190252 , 0314216 , 0168278
Germany 20104717.9
US 6,409,518 ?B1
China 01208311.9 , 498979
Specifications:(Meets F.C.C.Class A & CE & RoHS)
Motherboard

CLM-878A:
For AT/ATX M/B Extended Max to 12"x13"
CLM-878S:
For 20 Slots PCI/ISA Backplane for 20 long cards

Power Supply PS2 AT/ATX
MINI & DUAL ATX Redundant (Horizontal)
Fans 4 pcs (9.2 X 9.2 X 2.5 cm)
Front panel Lockable Front Door,
2 swing sercurity key-locks
Clamp An Extruded Aluminum round shaft bar fixed 2 sizes of adjustable pressing clamps, patent pended.
LEDs K/B Lock & Reset, Power Switch LEDS
or 4x Blanking Panels
Drive Bays 9 X 5.25"( VERTICAL) 3 X 5.25"(ORIZONTAL)
5 X 5.25"( VERTICAL)
Material Aluminum+SECC
Finished Black(RAL 9011)
Beige(RAL 7035)
Dimension INCH: 19" X 22" X 14" (W X D X H)
Shipping Dimension 1PC/CTN/7.0 CUFT
Weight N.W.: 22 KGS
G.W.: 24 KGS
